GSD GPS Series

ปั๊มหอยโข่ง GSD GPS Series


ปั๊มหอยโข่ง GSD GPS Series


Air-condition cold or hot water circulation Can be used together with equipment Water-supplying system of apartment building Industrial water supply Fire-fighting water system Construction engineering water supply Waste water treatment Farm water irrigation Boiler water supply

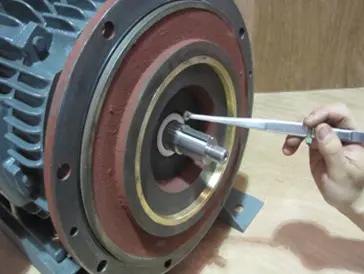

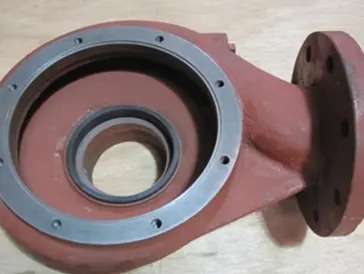

The optimal hydraulic model is used for impeller, the pump is of an utmost dynamic-static balance and reliable performance. The pump shaft is an extended one from the motor, so the concentricity is absolutely reliable. The pump which is supported by imported bearing, runs at little vibration and low noise. Single-stage single-suction horizontal centrifugal pump, closed impeller . Coaxial volute structure, high efficiency, small volume, light weight, easy installation and maintenance. Mechanical seal, no damage to shaft, no leakage, long duration. Materials can be selected according to the requirement of the customer. (Material of the pump model in the castalog is cast iron. The size and weight of the pump made of stainless steel can be provided separately.)

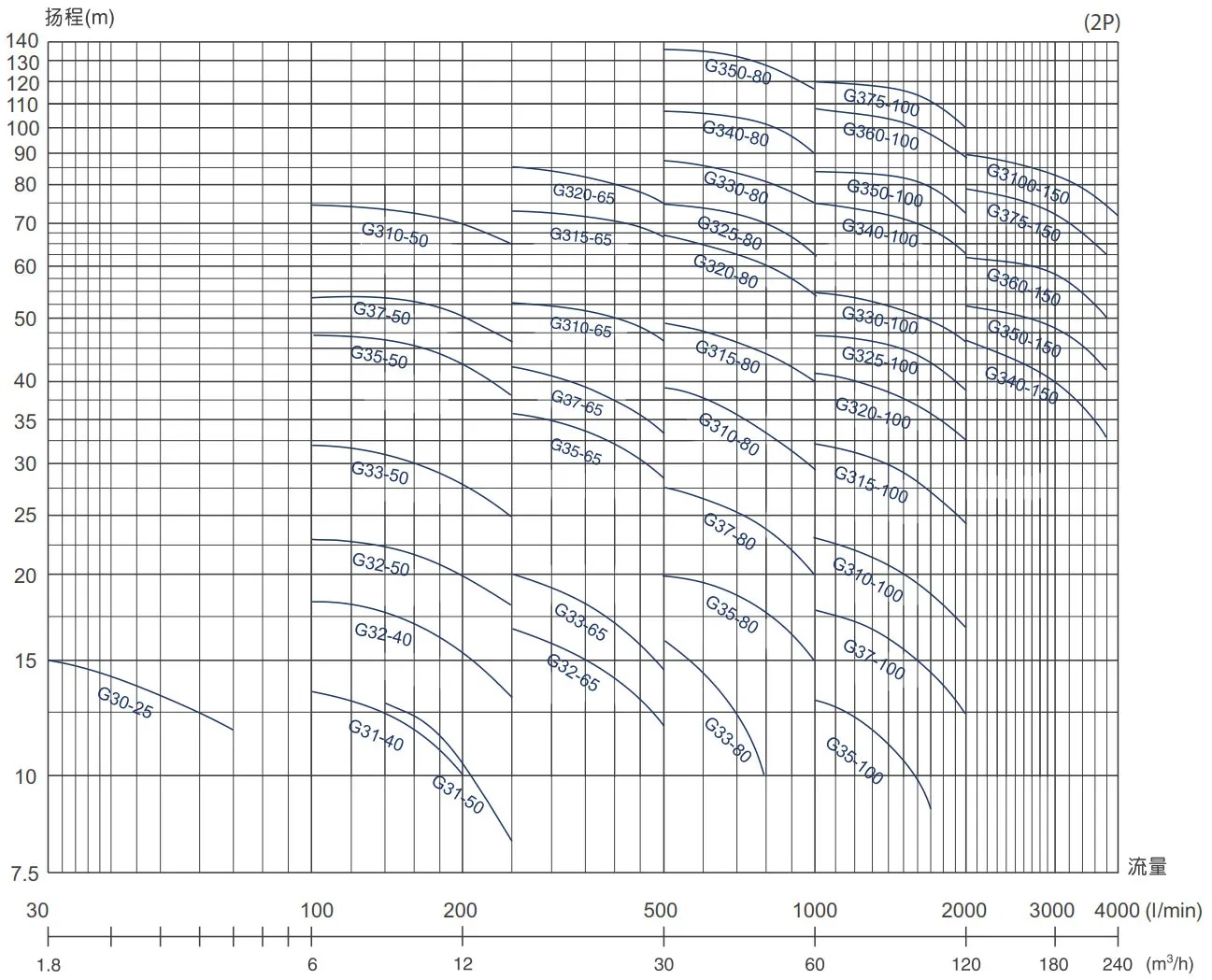

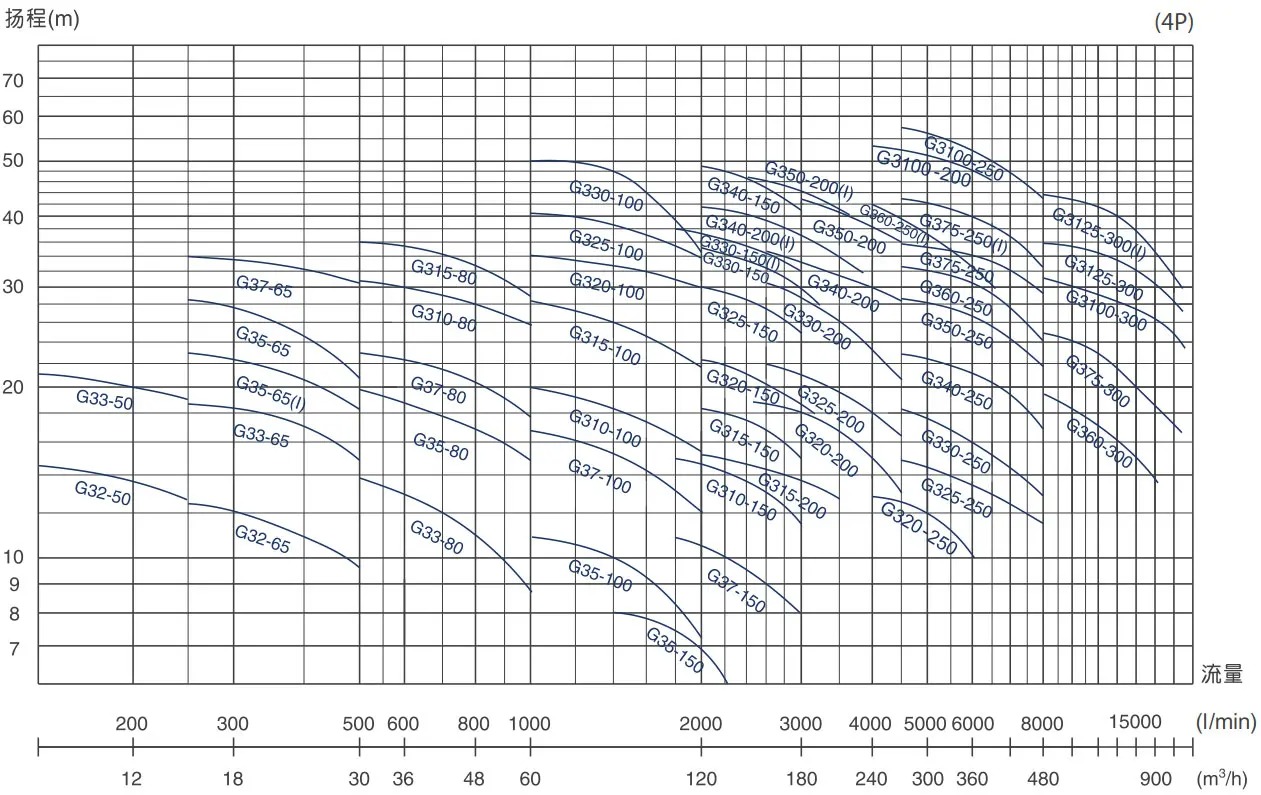

DN : 25 – 300 mm Flow rate : 2 ~ 900 m3/hr Head : 12 – 116 m Power : 0.37 – 90 kw Speed : 1450 rpm, 2900 rpm Material : Cast iron, Stainless steel Temp : < 85 ºC
